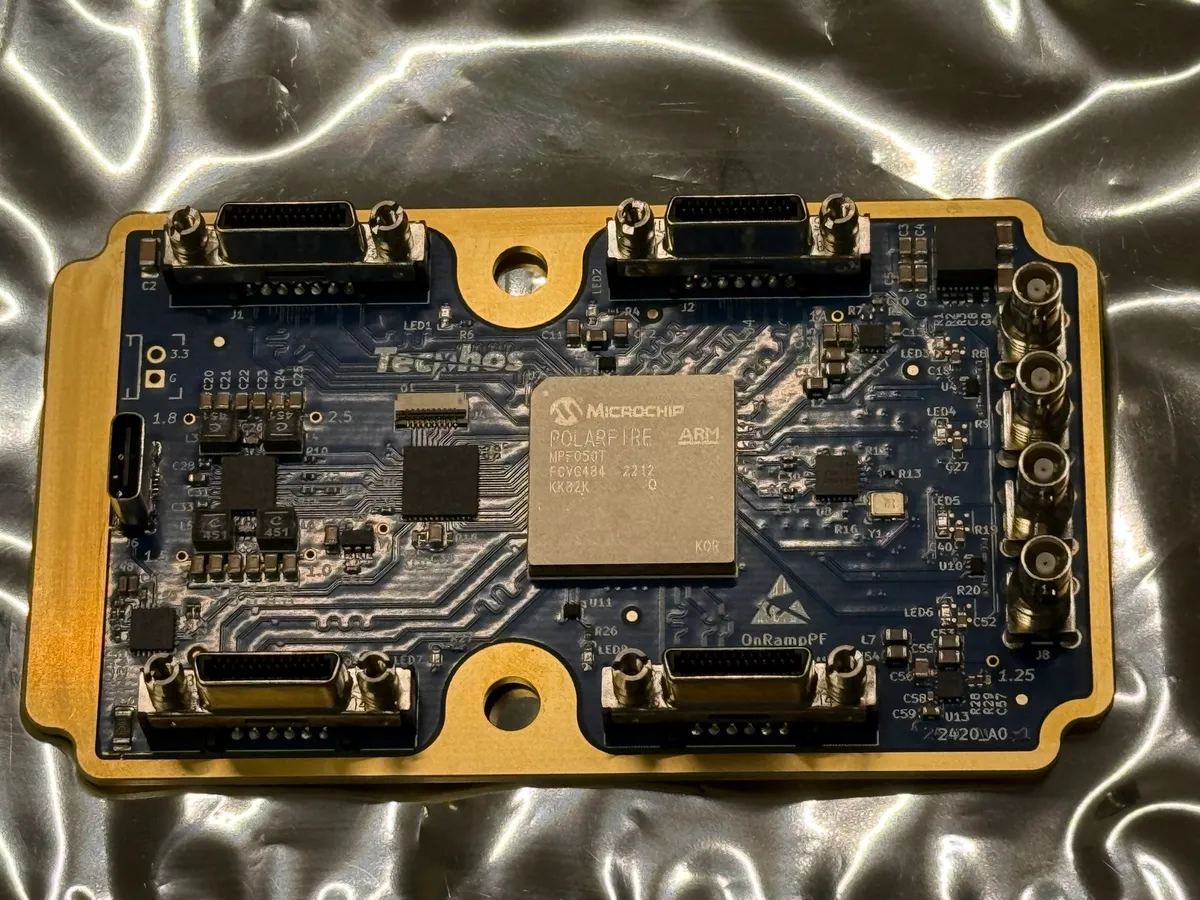

PolarFire 4× Camera Link to 4× CoaXPress
Project Details
Category Multi-Channel Converter
Interfaces Camera Link · CoaXPress · PoCXP · USB
Device Microchip PolarFire
PolarFire 4× Camera Link to 4× CoaXPress
Microchip PolarFire FPGA project for multi-channel Camera Link to CoaXPress conversion.
This design supports high channel-count industrial imaging where multiple Camera Link sources must be presented as CoaXPress devices with standards-based control and power delivery.
Key features
- 4× Camera Link SDP connectors for parallel pixel data inputs
- 4× CoaXPress device outputs
- Full GenICam support for configuration and control in standard vision software
- PoCXP (Power over CoaXPress) to power the attached CoaXPress paths
- USB programming and debug port for development, bring-up, and field support
The board provides a compact multi-stream bridge from Camera Link SDP sources to CoaXPress, with GenICam control and PoCXP power integrated on the same platform.

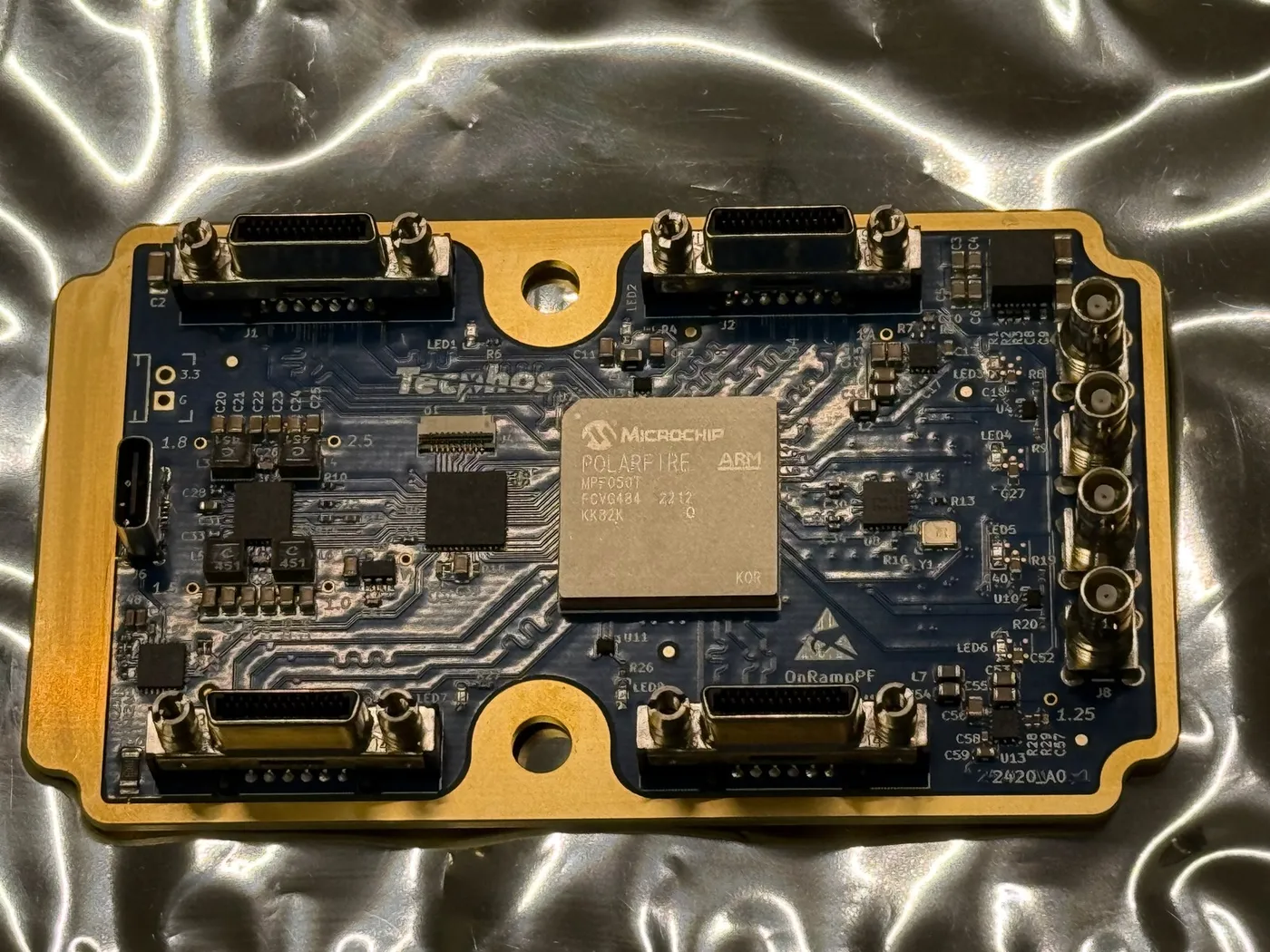

Gallery
